QD Hook Double Girder Overhead Crane

Overview

Essential details

Applicable Industries:

Garment Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining, Food & Beverage Shops, warehouse

Video outgoing-inspection:Provided

Machinery Test Report:Provided

Warranty of core components:1 Year

Core Components:PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Condition:New

Max. Lifting Load:200

Max. Lifting Height:Other

Span:7m-31m

Place of Origin:China

Warranty:1 Year

Weight (KG):11575 kg

Lifting mechanism:Electric Wire Rope Hoist

Control method:Ground Control+Remote Control

Application:Lifting Goods

Work Duty:A3~A4

Power supply:380V 50HZ/customization

Color:Clients' Requirments

After-sales Service Provided:Engineers

Supply Ability

10000 Set/Sets per Month

Packaging & delivery

Packaging Details

Export standard packaging

Port

any ports of China, depends on client inquiry

Double Girder Hook Overhead Crane Price

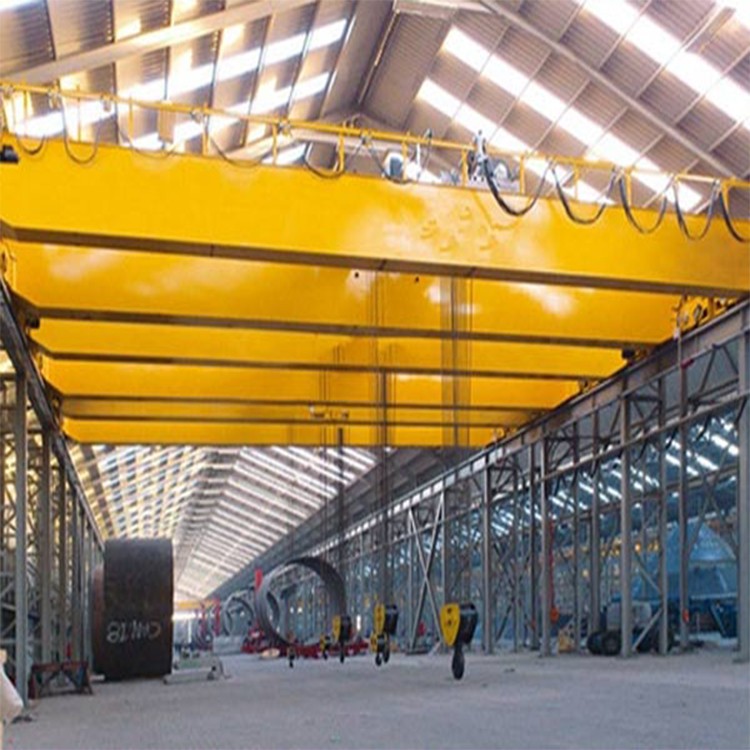

QD double girder hook overhead crane is composed with Girder frame, Crane travel device, and the trolley with lifting and moving device. There are Pave the rail for the trolley move on the main girder.
Assemble the moving table on the outside of the two main girder, one side is prepare for the assemble and maintenance the crane move device, another side is prepare for the assemble of the trolley conductor device.
There are full field of view Cabin suspend under the main girder, there are joint control desk or single control box packed within the Cabin, assemble the sidelong ladder between the Cabin and moving table, The main girder joint with the two side end carriage which with the joint point in the middle.

Double Girder Overhead Crane Features:

1. Heavy Duty and High Efficient; 2. Suitable for any environment ( High Temperature, Explosion Proof and so on); 3. Long Life Span: 30-50years; 4. Easy for Installation and maintenance; 5. Reasonable structure and strong rigidity; 6. The speed can be frequency inverter speed control; 7. Control method is cabin control or remote control; 8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook; 9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

>>> FAQ

If you are interested in our products, please no hesitate to contact us with following parameters:

1. Crane Capacity

2. Crane Span

3. Lifting Height

4. Work Duty(A3/A4 /M3...)

5. Traveling Length

Control Method:

Standard operating methods:

A: remote control with push buttons

B: cabin(space capsule seat) control with joystick.

Choose any type as you like.

7. Any spare parts like rails, bus-bar?

8. Local Power Supply

9. Quantity

10.Lifting Object

11. Desitination Port

More details or drawings, the better.

Notes: The parameters can be customized according to your specific needs.

After your selection

1. We will count cheapest shipping cost and make invoice to you at once.

2. Test each machine before delivery to ensure their quality, then send out to you after your

payment.

After-sale Service

1. Installation service of overhead crane available with:

Video tutorial support for whole installation process.

7/24 remote assistance for crane installation guidance and commissioning.

2. We are very glad that customer give us some suggestion for price and products.

3. If you have any question, please contact us freely by E-mail or Telephone
