QC TypeOverhead Crane with Electromagnetic Beam

Overview

Essential details

Applicable Industries:Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food Shop, Construction works , Energy & Mining, Other

Video outgoing-inspection:Provided

Machinery Test Report:Provided

Warranty of core components:1 Year

Core Components:Engine, Bearing, Motor

Condition:New

Rated Lifting Moment:100KN

Max. Lifting Load:50 ton

Max. Lifting Height: 16m

Span:3-20 meters

Place of Origin:Henan, China

Warranty:1 Year

Weight (KG):12560 kg

Colour:Yellow or optional

Crane feature:QC Overhead Magnet Crane

Power Source:3 Phase 380V 50hz

Main electrical parts:Schneider

Lifting speed:Variable Speed (standard)

Lifting mechanism:Eliectric Hoist

Control method:Wireless Remote Control

Supply Ability

10000 Piece/Pieces per Year

Double Girder 5t 15t 20t Industrial Electromagnetic Bridge 16/3.2 To 32 Electric Machinery China Lifting Magnet Overhead Crane

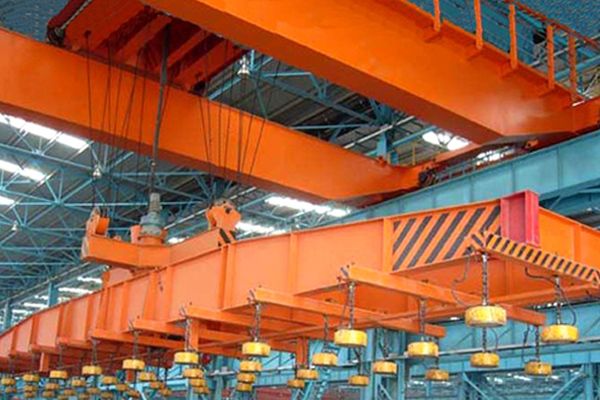

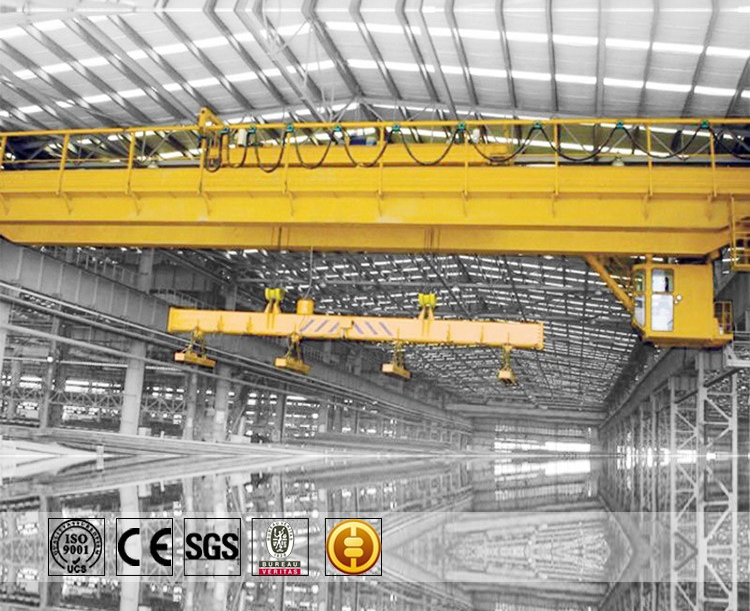

Overhead crane with electromagnetic beam is a specialized crane for lifting and moving steel products, steel plates and steel pipes. This crane is constituted by girder, traveling mechanisms, lifting trolley, electric parts and electromagnet spreader. The electromagnetic suction force of this overhead crane can last 10 minutes after power off. And the shape of electromagnet spreader could be customized bases on the shape of materials to be lifted.

There are 2 types of electromagnet spreader: electromagnetic chuck and electromagnetic beam. And electromagnetic beam can also be 2 kinds: non-rotating beam (vertical or parallel to main girder) and rotating beam (Upper beam or hanging beam).

Provide 3D Drawings: Electromagnetic beam Crane & Non-rotating Beam Model

1. Its lifting capacity includes the weight of electromagnetic part, and the weight of whole crane does not include the weight of electromagnetic chuck or its components;

2. Box-typed girder structure is welded in high strength by robots;

3. The rotating part of hook must be locked by screws during electromagnetic plate working;

4. Heavy-duty slip ring motor from Wuxi NGP, the best quality in China;

Specification

>>> FAQ

If you are interested in our products, please no hesitate to contact us with following parameters:

1. Crane Capacity

2. Crane Span

3. Lifting Height

4. Work Duty(A3/A4 /M3...)

5. Traveling Length

Control Method:

Standard operating methods:

A: remote control with push buttons

B: cabin(space capsule seat) control with joystick.

Choose any type as you like.

7. Any spare parts like rails, bus-bar?

8. Local Power Supply

9. Quantity

10.Lifting Object

11. Desitination Port

More details or drawings, the better.

Notes: The parameters can be customized according to your specific needs.

After your selection

1. We will count cheapest shipping cost and make invoice to you at once.

2. Test each machine before delivery to ensure their quality, then send out to you after your

payment.

After-sale Service

1. Installation service of overhead crane available with:

Video tutorial support for whole installation process.

7/24 remote assistance for crane installation guidance and commissioning.

2. We are very glad that customer give us some suggestion for price and products.

3. If you have any question, please contact us freely by E-mail or Telephone
