BZD floor mounted workstation jib crane

Overview

Essential details

Feature:Bridge Crane

Applicable Industries:Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining

Video outgoing-inspection:Provided

Machinery Test Report:Provided

Marketing Type:Hot Product 2023

Warranty of core components:1 Year

Core Components:PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Condition:New

Max. Lifting Height:10M, 6m

Place of Origin:Henan, China

Warranty:1 Year

Weight (KG):3030 kg

Product Name:jib crane

Lifting mechanism:Eliectric Hoist

Color:Clients' Requirments

Power Source:3 Phase 380V 50hz/Custmized

Application:Lifting Goods

Control method:Ground Control+Remote Control

Main electrical parts:Schneider

Working Temperature:10 ~45

Material:Q235B

Work Duty:A3~A4

Supply Ability

Supply Ability

30000 Set/Sets per Year China European Wire Rope Electric Hoist With Best Price

Packaging & delivery

Packaging Details

Export standard packaging

Port

Tianjin/Qingdao/Shanghai port,China

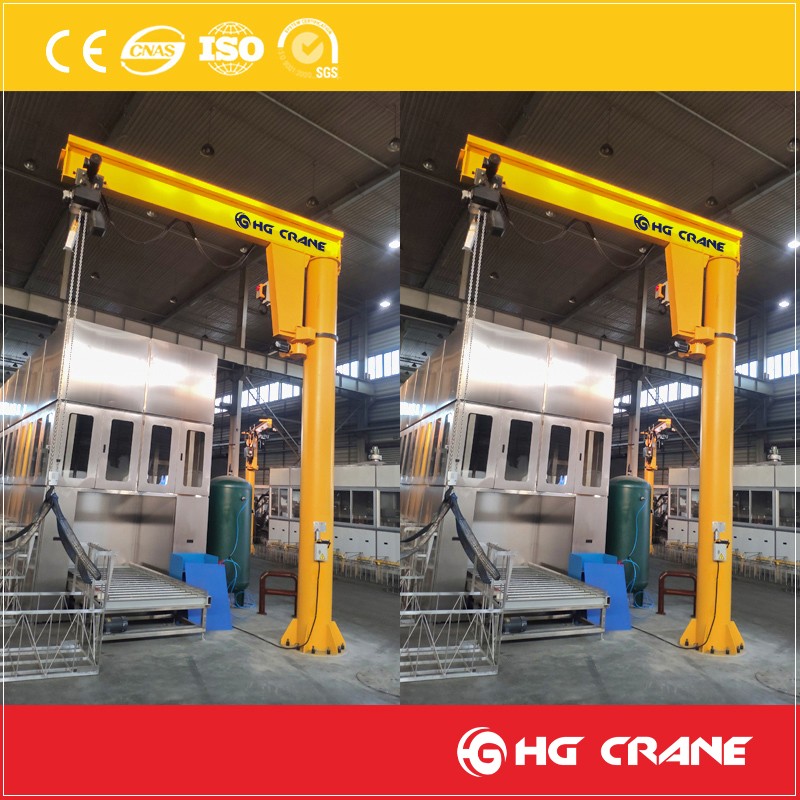

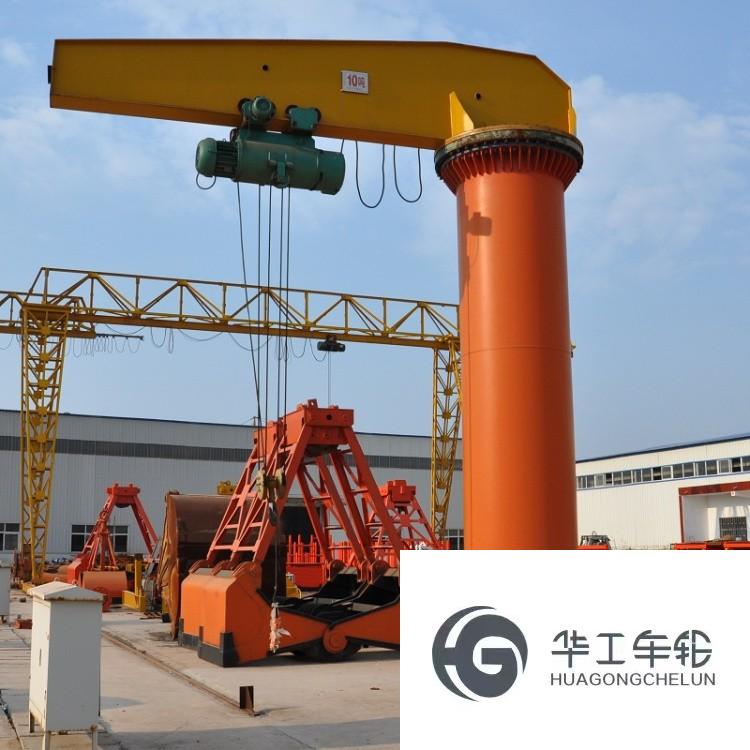

Floor Mounted Jib Crane

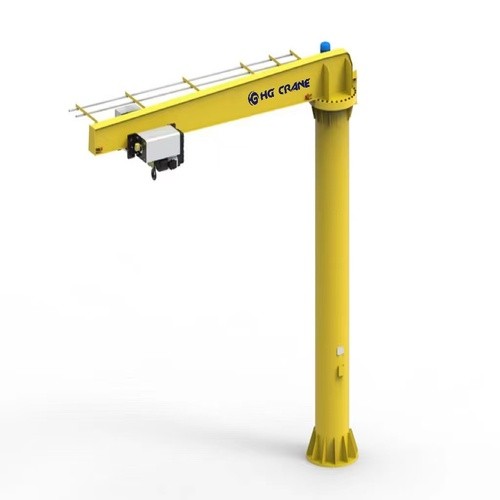

Free Standing Column Jib Crane
•Column cantilever crane is a kind of light and small lifting equipment. It has the advantages of novel structure, high efficiency,energy saving, time and labor saving, reasonable, simple, convenient operation, flexible rotation, and large working space.
•Random operation in the three-dimensional space, in short-distance and intensive transportation occasions, shows its superiority than other conventional lifting equipment, and is an energy-saving and efficient material lifting equipment. It can be widely used in fixed places such as workshop production lines, warehouses, and docks.

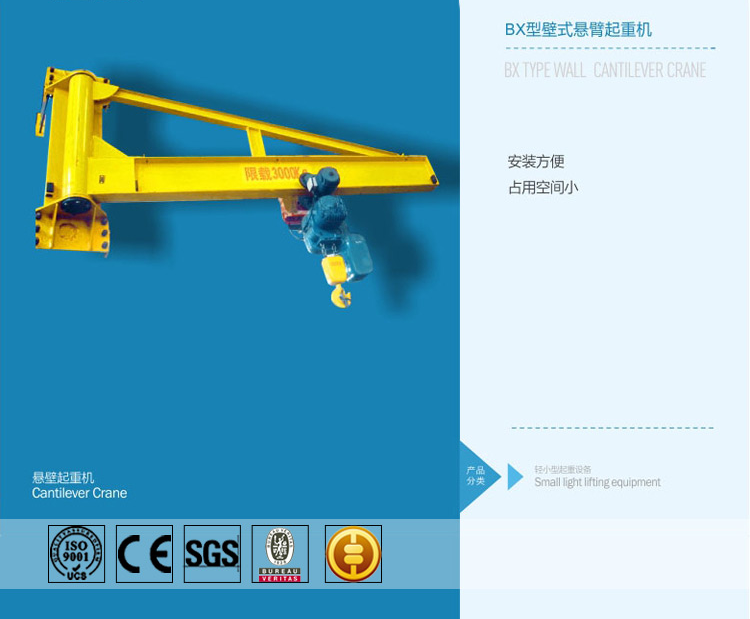

Wall Travelling Jib Crane
•The wall-mounted cantilever crane is a special crane for machinery manufacturing and assembly workshops. It uses the rails arranged on the walls of the multi-layer assembly workshop to walk on the walls, which can make full use of the space structure of the workshop and save the production space. The operation is flexible and convenient.
•It provides fluent moving of materials on an every level of the workshop.
•Equipped by wire rope hoists with low headroom or chain hoists series.

Cantilever Jib Crane Features:

1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

Structure diagram

Column cantilever Jib cranes

Wall-mounted cantilever jib cranes

Technical Parameters

>>> FAQ

If you are interested in our products, please no hesitate to contact us with following parameters:

1. Crane Capacity

2. Crane Span

3. Lifting Height

4. Work Duty(A3/A4 /M3...)

5. Traveling Length

Control Method:

Standard operating methods:

A: remote control with push buttons

B: cabin(space capsule seat) control with joystick.

Choose any type as you like.

7. Any spare parts like rails, bus-bar?

8. Local Power Supply

9. Quantity

10.Lifting Object

11. Desitination Port

More details or drawings, the better.

Notes: The parameters can be customized according to your specific needs.

After your selection

1. We will count cheapest shipping cost and make invoice to you at once.

2. Test each machine before delivery to ensure their quality, then send out to you after your

payment.

After-sale Service

1. Installation service of overhead crane available with:

Video tutorial support for whole installation process.

7/24 remote assistance for crane installation guidance and commissioning.

2. We are very glad that customer give us some suggestion for price and products.

3. If you have any question, please contact us freely by E-mail or Telephone
