HD European Single Beam Overhead Crane FEM/DIN

Overview

Essential details

Applicable Industries:

Building Material Shops, Machinery Repair Shops, Printing Shops, Construction works , Energy & Mining, Other, WORKSHOP

Video outgoing-inspection:Provided

Machinery Test Report:Provided

Marketing Type:Ordinary Product

Warranty of core components:1 Year

Core Components:PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Condition:New

Rated Lifting Moment:N/A

Max. Lifting Load:16 ton

Max. Lifting Height:20 m, customized

Span:25.5 m

Place of Origin:Henan, China

Warranty:1 Year

Weight (KG):5000 kg

Lifting Mechanism:European Electric Hoist

Motor:Global Brand

Work Duty:A5

Lifting Capacity:3 ton

Lifting Speed:0.8/5 m/min

Lifting Height:20 m

Power Supply:3 Phase AC 380V 50HZ

Color:Customized Color Acceptable

Material:Q235B

Supply Ability

15000 Set/Sets per Year

Packaging & delivery

1. Electric parts are packed by high-quality plywood crate, to reduce distortion in conveying.
2. Main beams, end beams, and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during transportation.
3. If the size is suitable for container ship, usually by container.
4. Big size, usually by bulk ship or by container after truncation.
5. Transport ways are based on reducing costs & keep safety.

Port

any ports of China, depends on client inquiry

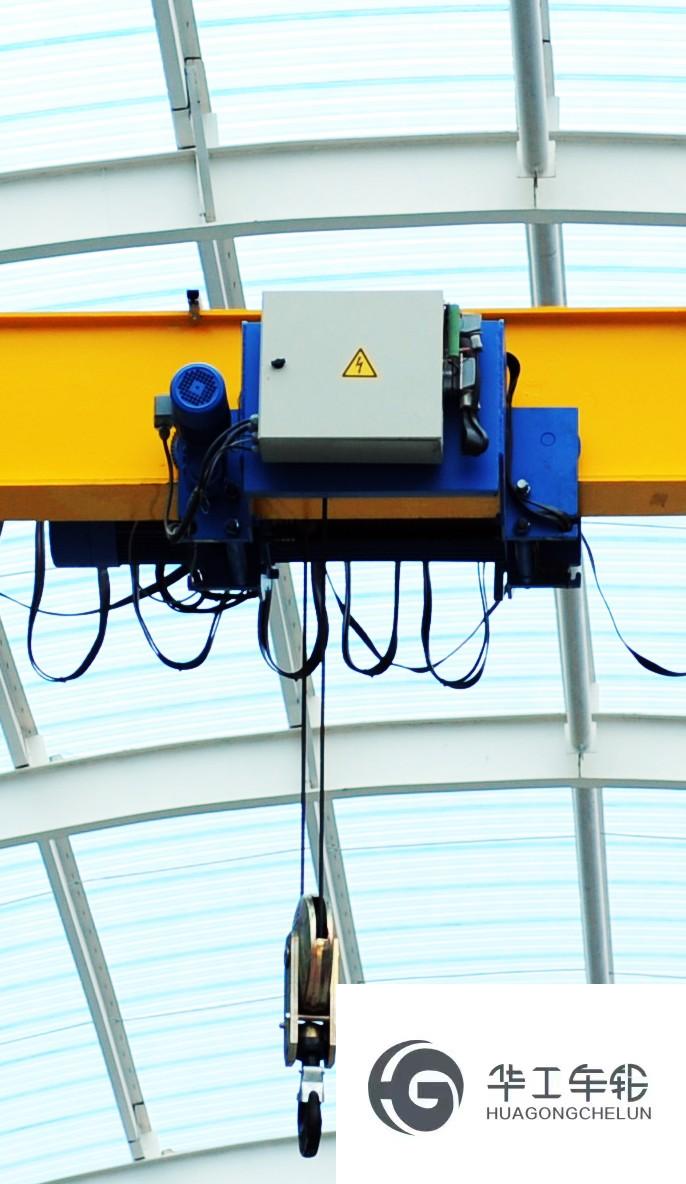

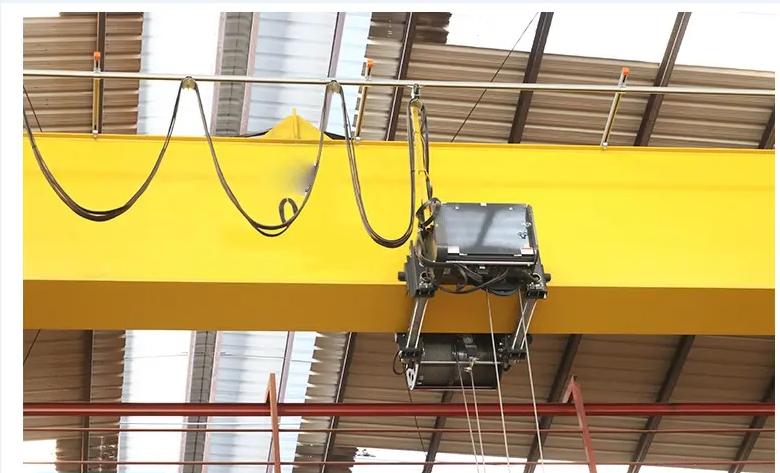

single girder European Overhead Crane

HD Europe standard single Girder overhead crane is our new designed crane for the low workshop and high lifting height demands. It has many advantages such as: Strong rigidity, light dead weight, outstanding structure design, etc. It could save your factory space and investment effectively. Its technology is advanced and design is based on international standard: DIN (Germany), FEM (Europe), and ISO (International). Its particular and special travelling structure is your best choice.

HD electric single girder overhead crane could be widely used to handle materials in many industries' workshop and warehouse. such as machinery manufacture. warehouse. logistic. food. paper making, electronics industries workshop and other material handling situations. The lifting hoist adopts M5 working class with double lifting speed. motor with ABM German brand motor. Travelling motor uses SEW European brand in one motor gear motors. Cross and long traveling are variable travelling speed. Electric parts adopt Siemens brand. The protection class is IP 54 high class. The working class can reach to A5/M5 class under ISO standard.

Overhead Crane Features:

1). Single welding box girder
2). DIN/FEM standard deflection
3). Whole length CNC cutting for complete web plate, high deflection accuracy
4). High quality automatic welding and NDT inspection
5). Shot-blasting Sa2.5 for complete girder after welding, stress release
6). High tension bolts mounting between girder and legs, life time safety connection
7). Compacted gear motor driving, stepless control, harden gear, safety disc brake IP55
8). High protection class IP55, F class, 40% ED
9). Excellent driving properties, stepless control, smoothly moving
10). All hoist and crane movements are independent and can be run simultaneously.

>>> FAQ

If you are interested in our products, please no hesitate to contact us with following parameters:

1. Crane Capacity

2. Crane Span

3. Lifting Height

4. Work Duty(A3/A4 /M3...)

5. Traveling Length

Control Method:

Standard operating methods:

A: remote control with push buttons

B: cabin(space capsule seat) control with joystick.

Choose any type as you like.

7. Any spare parts like rails, bus-bar?

8. Local Power Supply

9. Quantity

10.Lifting Object

11. Desitination Port

More details or drawings, the better.

Notes: The parameters can be customized according to your specific needs.

After your selection

1. We will count cheapest shipping cost and make invoice to you at once.

2. Test each machine before delivery to ensure their quality, then send out to you after your

payment.

After-sale Service

1. Installation service of overhead crane available with:

Video tutorial support for whole installation process.

7/24 remote assistance for crane installation guidance and commissioning.

2. We are very glad that customer give us some suggestion for price and products.

3. If you have any question, please contact us freely by E-mail or Telephone
