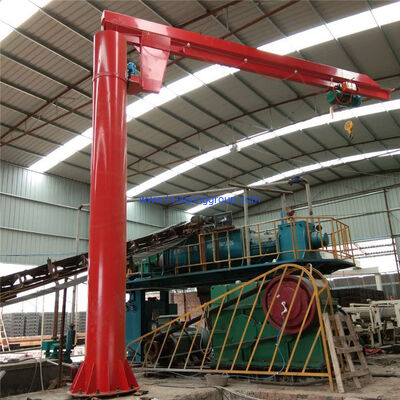

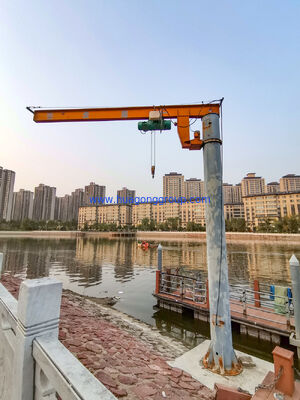

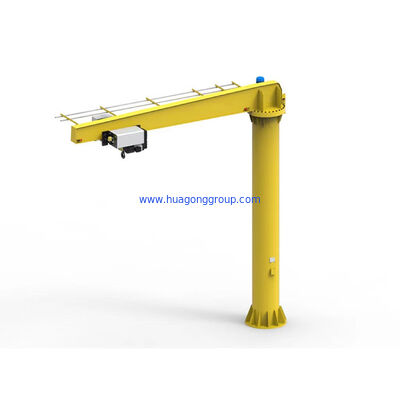

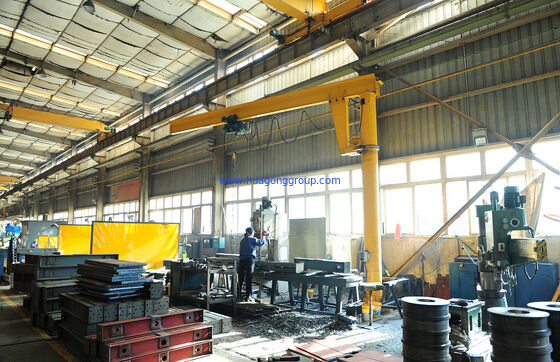

Rated Lifting Moment 10-2000KN Custom Movable Mini Electric Swinging Arms Floor Mounted Jib Crane with Electrical Hoist

Large Image : Rated Lifting Moment 10-2000KN Custom Movable Mini Electric Swinging Arms Floor Mounted Jib Crane with Electrical Hoist Get Best Price

Product Details:

Place of Origin:	Henan, China
Brand Name:	HUAGONG
Certification:	CE
Model Number:	JIB

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	CN¥20,905.80/sets 1-9 sets
Delivery Time:	15 DAYS
Payment Terms:	T/T

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	Engine, Bearing, Gearbox, Motor	Application:	Industrial Production Line
Rated Loading Capacity:	0.5~20t	Rated Lifting Moment:	10-2000KN
Max. Lifting Height:	3~10m	Span:	2~10m
Warranty:	1 Year	Weight (KG):	380 Kg
Product Name:	Column Mounted Slewing Jib Crane	Type:	Jib Crane
Lifting Mechanism:	Elctrical Hoist	Control Method:	Pendent Control/Remote
Main Electrical Parts:	Schneider	Power Supply:	Customer Request
Turning Angle:	90 Degree	Color:	Customer's Requirements

Basic information of Model Free Standing Jib Crane/BZ:

BZ type cantilever crane is a kind of crane used with chain hoist or wire rope hoist. It is composed of a column, a swing arm, a cantilever drive device and an electric hoist. The bottom base of the column is fixed on the concrete foundation through the anchor bolt. The motor drives the reducer to make the cantilever beam rotate. The electric hoist runs back and forth on the cantilever I-beam.
