A3 A4 Work Duty LD Single Girder EOT Crane - 10 Ton Lifting Capacity
LD ELECTRIC SINGLE GIRDER OVERHEAD CRANE
Lifting Capacity: 1-32 ton Span: 3-35 meter
Lifting Height: 3-50 meter Working Grade: A3-A5
Single girder overhead crane mainly consists of main beam, end beams, electric hoist, H track electric part and controlsystem. The hoist of single girder overhead crane goes with CD, MD electric hoist or low headroom electric hoist t ismainly applicable to workshops and warehouses.
Light structure, easy installation: with one main beam and two end carriages.
Reasonable structure: suitable for handling medium and light loads,commonly in small and medium-sizedfactories, warehouses, logistics centers,etc.
Low noise, soft starting and stopping:making a comfortable working environment.
Travels on main girder, for crane lifting.Usually equipped CD/MD/ Low head room lifter with other crane.
Safe and reliable operation: with various safety devices such as limit switch,overload protection dovice, emergoncy stop button, etc.
For power supply of crane and hoist, we usually equipped Schneider, Yaskawa,ABB brand.
Applications & Installation

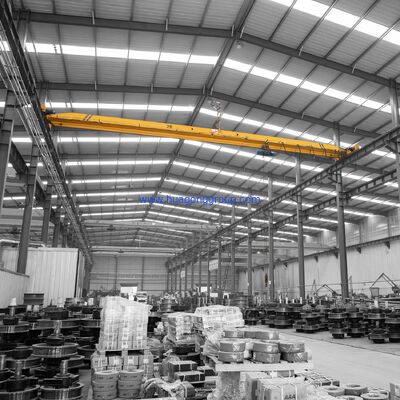

This LD single girder EOT crane is designed for diverse industrial applications including manufacturing facilities, workshops, warehouses, and steel mills. The crane is typically installed indoors with the main beam positioned above the workspace, supported at both ends by columns or metal structures to form a robust bridge configuration.
Key Features & Benefits
Electric Hoist Integration: Utilizing electric hoists as the primary lifting mechanism, this LD bridge crane delivers exceptional operational efficiency for various lifting tasks. The system offers straightforward control and requires minimal maintenance, ensuring reliable performance with reduced downtime.
Maln Girder
Linked with end beam, for hoisttraversing, usually design normaltype and box type to meet customer'srequest.
End Beam
To linked with main girder, for cranetraveling, Usually have normal typy andeuropean type end beam.
Girder Section
Make main girder divided into two ormore parts, so it is more convenient fortransport, and assemble.
Technical Specifications
| Specification |
Details |
| Maximum Lifting Capacity |
10 Tons |
| Work Duty Classification |
A3 / A4 |
| Crane Type |
LD Single Girder EOT (Electric Overhead Traveling) |
| Maximum Span |
25 Meters |
| Control System |
PLC Motor Gear Construction |
| Primary Applications |
Manufacturing, Workshops, Warehouses, Steel Mills |
