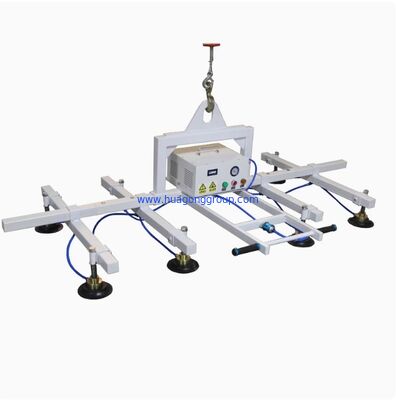

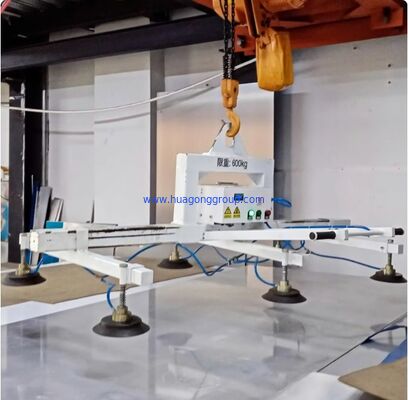

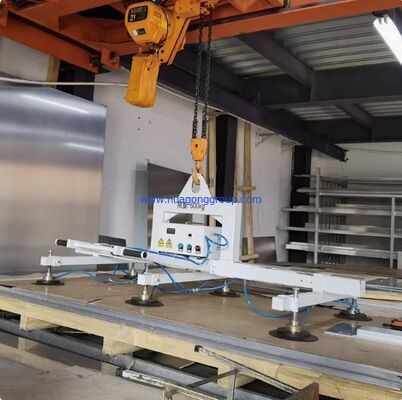

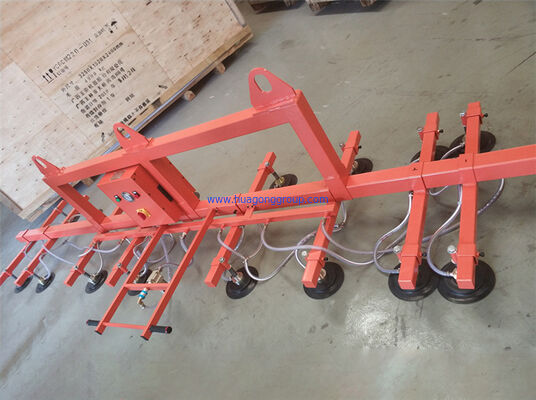

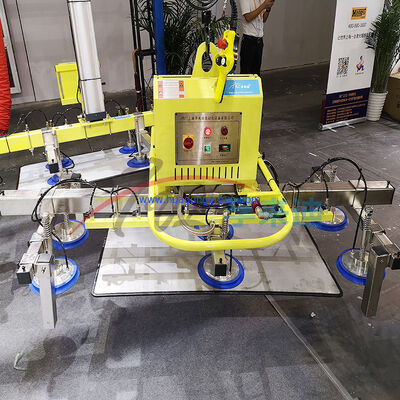

AC Power Customizable Glass Installation Robot Electric Suction Cup Car Rotating Glass Suction Cup Lift CE Certification
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Compatible Material Type: | Glass, Metal, Plastic, Stone | Load Capacity: | 800 Kg |
|---|---|---|---|
| Number Of Pads: | 8, 1, 10, 4 | Warranty: | 1 Year |
| Condition: | New | Controls: | Remote Control, Manual Control, Automatic Control |
| Dimension(L*W*H): | Customizable | Bag Handle: | Horizontal Handle |
| Load Movement: | Horizontal, 90° Tilt, Manual 360° Rotation, Manual 180° Rotation | Power Source: | AC Power, Battery |
| Release Mechanism: | Release Valve | Weight (KG): | 160 |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Other |
Products Description
Mainly for all kinds of laser cutting machine to achieve semi-automatic loading and unloading, CNC punching and unloading fields The material taking method adopts vacuum suction, suction speed, high stability, small vibration, long service life, movable sucker, control the size of absorbing plate area
Product Paramenters
product name | scalable heavy-duty plug-in type | ||
product type | JS-J1000-5m | JS-J800-3m | JS-J800-2m |
safety loading | 1000kg | 800kg | 800kg |
sucker number | 12 | 8 | 8 |
sucker diameter | 200 | 200 | 200 |
size | 5000*1000 | 3000*1000 | 2200*1000 |
sheet size | 6000*1500 | 4000*1500 | 3000*1500 |
working power supply | 220v | 220v | 22v |
main features
Excellent material quality
The suction cup is made of rubber material, and even rough surface plates can be sucked in, which can withstand
high temperatures
Low noise
Adopting German process vacuum pump, low vibration gas displacement, vacuum adsorption, low noise
High of effience
It can be transferred to the suction cup for suction within one second and released in two seconds, with fast response
