| Place of Origin: | China |
| Brand Name: | HG CRANE |
| Model Number: | LD |

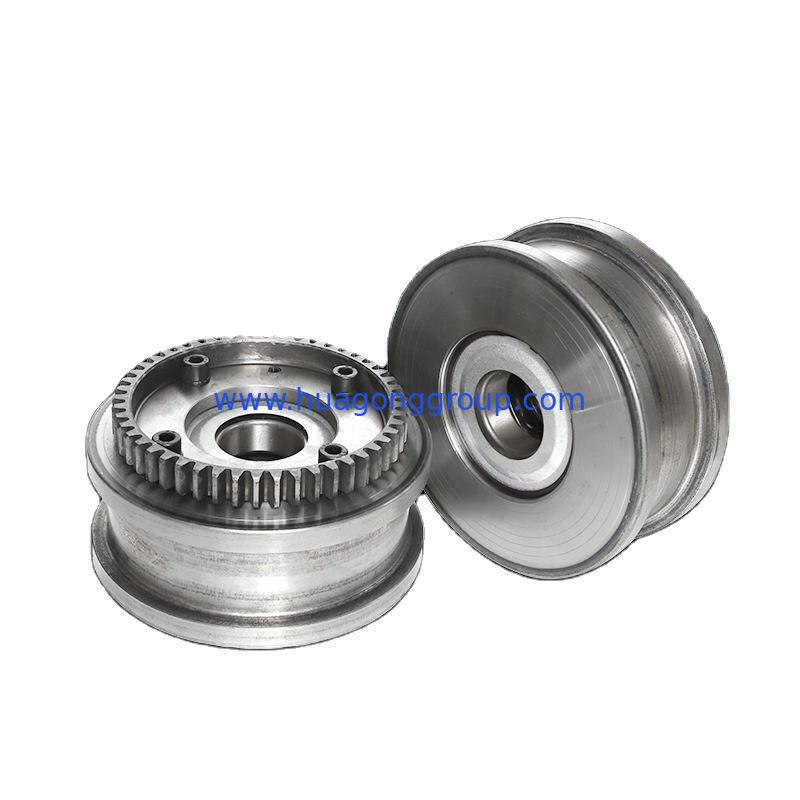

Crane ld wheel set
Precision processing ensures stable performance
Driving wheel
Driven wheel
Shaft
Ring gear
Bearing
Precision gears aremore stable in use
Made with 20crmnti steel - a low-carbon alloy steel known for its high hardness and stable performance.
it undergoes vacuum carburizing heattreatment, resulting in a uniform case depth
Steelthrough shaft
Round steel is processed and manufactured by high-precision machine tools.
it is easy to install and has built-in oil injection holes
| Size(mm) | ||||||
| Specifications | A Wheel Diameter |
B Tire Diameter |
C Total Thickness |
D Rim Groove |
E Inner Diameter |
F Bearing Inner Strike |
| LD150 | 150 | 128 | 140 / 160 | 110 / 130 | 85 | 45 |
| LD200 | 185 | 158 | 80 | 60 | 90 | 50 |
| LD300 | 295 | 265 | 116 | 70 / 90 | 150 | 70 |
| LD400 | 395 | 365 | 118 | 90 | 190 | 90 |
| Size(mm) | ||||
| Specifications | G Major head diameter |
H Middle diameter |
I Small head diameter |
shaft length |
| LD150 | 48 | 45 | 40 | 220 / 240 |
| LD200 | 55 | 50 | 45 | 200 |
| LD300 | 75 | 70 | 65 | 263 |
| LD400 | 100 | 90 | 85 | 273 |
Ld driving wheel accessories display
