| Place of Origin: | CHNINA |
| Model Number: | single girder |

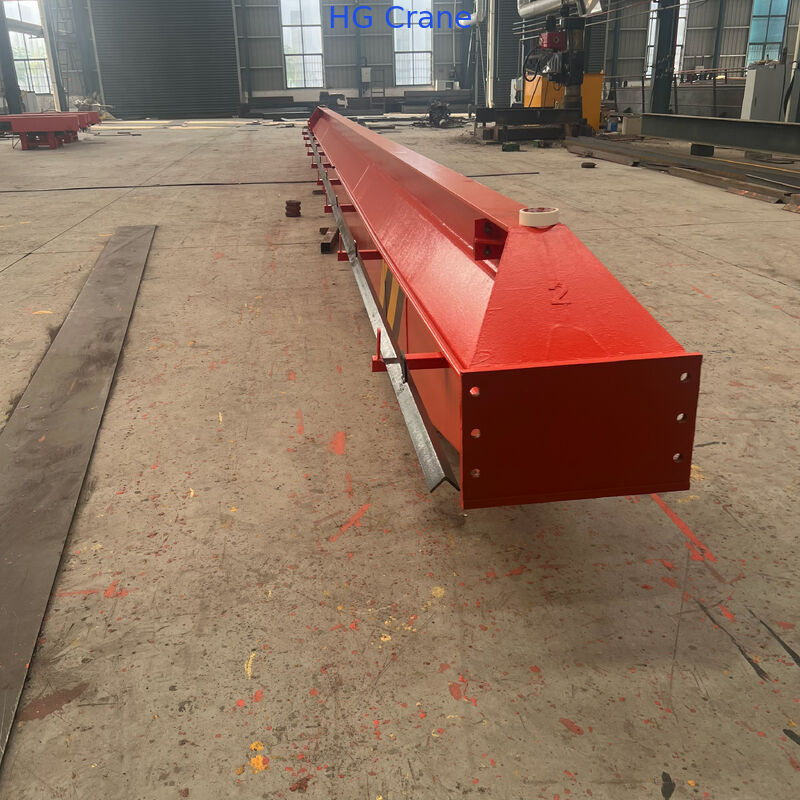

The 5 ton single girder overhead crane is a cost-effective and reliable lifting solution for workshops, warehouses, factories, and production lines. With a compact single girder structure, it reduces workshop height requirements and installation costs while providing stable lifting and smooth travel performance.
Our 5T EOT crane can be customized with different span, lifting height, voltage, control method, and hoist configuration to meet your exact working conditions. It is widely used for material handling, loading and unloading, assembly, and maintenance work.
| Item | Specification |
|---|---|
| Lifting Capacity | 5 t / 5000 kg |
| Lifting Height | 6–24 m (customizable) |
| Span | 7.5–22.5 m (customizable) |
| Hoist Type | CD1 / MD1 wire rope hoist |
| Lifting Speed | 8 m/min (single speed / double speed optional) |
| Travel Speed | 20 m/min |
| Working Class | A3–A5 |
| Power Supply | 380V 50Hz 3Phase (customizable) |
| Control Method | Pendant / Remote / Cabin |
| Protection Class | IP44 or higher |
| Temperature Range | -20°C to +40°C |
The 5 ton single girder overhead crane is widely used in:
Manufacturing plants
Warehouses and logistics centers
Steel processing workshops
Assembly lines
Maintenance and repair shops
Loading and unloading areas
Machinery, mold, and equipment handling
中文说明:
适用于机械制造,仓库物流,钢铁加工,装配线,维修车间,装卸区域等.
Factory direct price: no middleman cost
Customized solution: designed according to your workshop and working condition
Strict quality control: professional inspection before shipment
Export wooden case packing: safe for long-distance sea transportation
Fast delivery: stable production schedule
After-sales support: technical guidance and spare parts service
The crane and electric hoist are packed in export wooden cases for safe sea transportation.
Single wooden case size and weight depend on final configuration.
We provide complete shipping documents and can assist with container loading.
中文说明:
采用出口木箱包装,适合海运.单箱尺寸和重量以实际生产配置为准.
Q1: What is the span of the 5 ton single girder crane?
A: It can be customized from 7.5 m to 22.5 m.
Q2: What voltage can you provide?
A: 380V 50Hz 3Phase is standard. Other voltages are available on request.
Q3: What control methods are available?
A: Pendant control, remote control, and cabin control.
Q4: What is the delivery time?
A: Usually 15–30 days after deposit, depending on configuration.
Q5: Do you provide warranty?
A: Yes, 12 months warranty and technical support.
Looking for a reliable 5 ton single girder overhead crane?
Contact us today for a free quotation, technical drawing, and customized solution.
