With the functions of steady traveling, stepless speed regulation, the Molten Steel Ladle Transfer Car is commonly applied to transfer steel ladle, aluminum ladle, lead ladle, steel slag etc. Generally the outer surface temperature of the ladle is 200-300 degree , due to the high temperature, the Molten Steel Ladle Transfer Car should be designed with heat exposure proof device,especially to the battery, motor, reducer and electric appliance.
It can avoid the cart from damaging and shortening using time. During the cart working, it must be steady travel, steady start and slowly stop. In order to avoid the cart broken during working, there equipped two sets driving system, if the main driving system is broken, the spare driving system can be start at the same time.
 |
|
|
|
I'm Online Chat Now

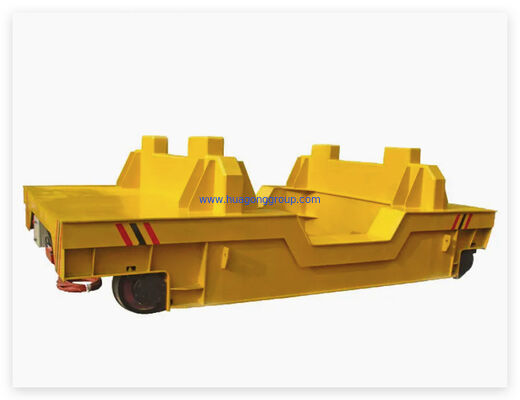

Iron Heat Resistance Molten Steel Ladle Transfer Car Capacity Specifications Including 150t 300t 450t
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Iron, Metal, Cast Iron | Warranty: | 1 Year |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Energy & Mining | Condition: | New |
| Weight (KG): | 150t |
Products Description
Molten Steel Ladle Transfer Car
Structure of Molten Steel Ladle Transfer Car
All units are equipped with state of the art safety features including safety lights, horns, bumpers, dead man controls and mushroom type emergency stop buttons. HGCRANE vehicles equipped with semi-automatic and fully automatic control systems come
equipped with a wide range of fully automatic safety controls.
equipped with a wide range of fully automatic safety controls.
Product Paramenters
Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | ||
Rated Load(t) | 2 | 20 | 50 | 100 | 150 | ||
Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 | |
Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | ||
Height(H) | 450 | 550 | 650 | 900 | 1200 | ||
Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | ||
Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | ||
Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 | ||
Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | ||
Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | ||
Battery Capacity | 180 | 180 | 330 | 440 | 600 | ||
Battery Voltage | 24 | 48 | 48 | 72 | 72 | ||
Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | ||
Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | ||
Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | ||

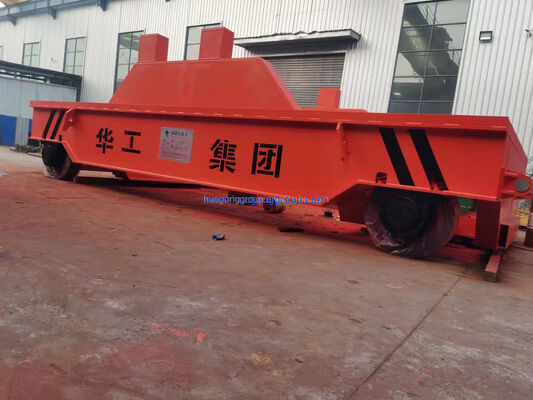

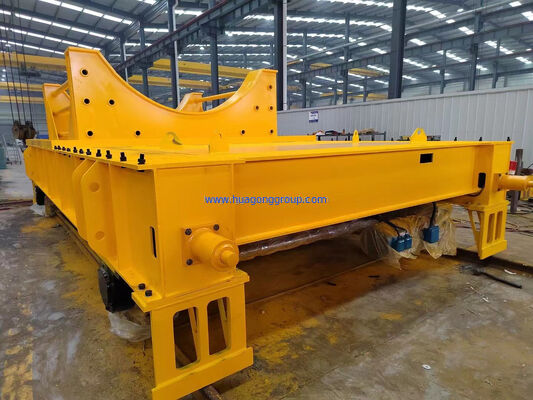

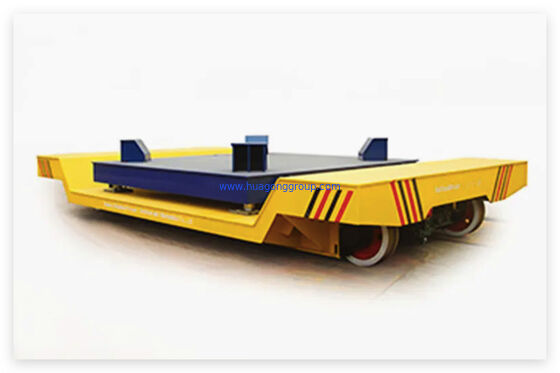

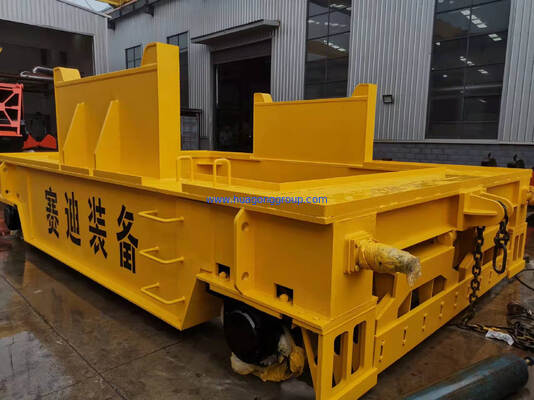

Details Images
