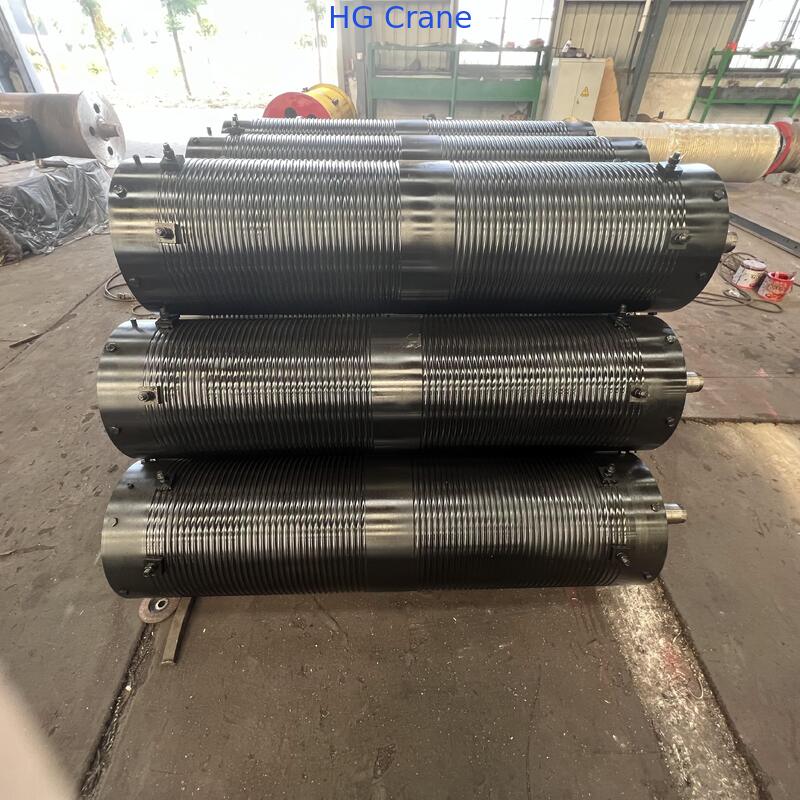

CNC Machined Induction Hardening Wear‑Resistant Wire Rope Drum

Full Product Description

 Core Features

1. CNC Precision Machining: High‑accuracy rope groove, tight tolerance, smooth rope winding, prevent rope disorder and abrasion
2. Induction Hardening Groove: Groove HRC45‑55, hardening depth ≥2mm, excellent wear resistance, long service life
3. High‑Strength Raw Material: Q345B, 45#, 42CrMo alloy steel optional, strong load‑bearing capacity, anti‑deformation
4. Customized Structure: Size, groove, shaft, flange, coupling connection all customizable
5. Strict Quality Control: NDT inspection available, complete inspection report provided
6. Anti‑corrosion Surface Finish: Sandblasting + epoxy paint, adapt to workshop, port, mine and other harsh environments

   Our Solution


   CNC precision machined rope groove, groove surface induction hardening HRC48‑55, hardening depth ≥2mm. Material 42CrMo alloy steel. Spiral groove customized for Φ36mm wire rope. Sandblasting + high‑temperature resistant epoxy paint. UT non‑destructive inspection before delivery.



   Material 材质	Grade 牌号	Yield Strength 屈服强度 MPa	Tensile Strength 抗拉强度 MPa	Induction Hardening 感应淬火效果	Hardness after hardening 淬火后 HRC	Hardening depth 有效淬火层	Typical Application 适用工况	Advantages 优点	Disadvantages 缺点
   Carbon steel 普通碳钢	45#	≥355	≥600	Good	45‑52	1.5‑2.0mm	Light‑medium duty crane, general winch 轻‑中级起重机,普通卷扬	Low cost, easy CNC machining, good hardenability 成本低,机加工性能好,可感应淬火	Poor toughness, not suitable for heavy impact 韧性一般,不适合强冲击重载
   Low alloy structural steel 低合金结构钢	Q345B	≥345	470‑630	Fair	42‑48	1.2‑1.8mm	Port crane, gantry crane, general heavy‑duty 港口,门机,一般重载工况	Good toughness, anti‑low‑temperature, good welding performance 韧性好,抗低温,焊接性能优秀	Hardening hardness lower than 45# & 42CrMo 淬火硬度偏低,耐磨略差
   Alloy steel 合金结构钢	42CrMo	≥930	≥1080	Excellent	48‑55	2.0‑3.0mm	Metallurgy, mining, high‑impact heavy‑duty 钢厂,矿山,强冲击重级工作制	High strength, high toughness, deep hardening layer, wear‑impact resistant 高强度高韧性,淬火层深,抗冲击耐磨	Higher material & processing cost 材料与加工成本更高
