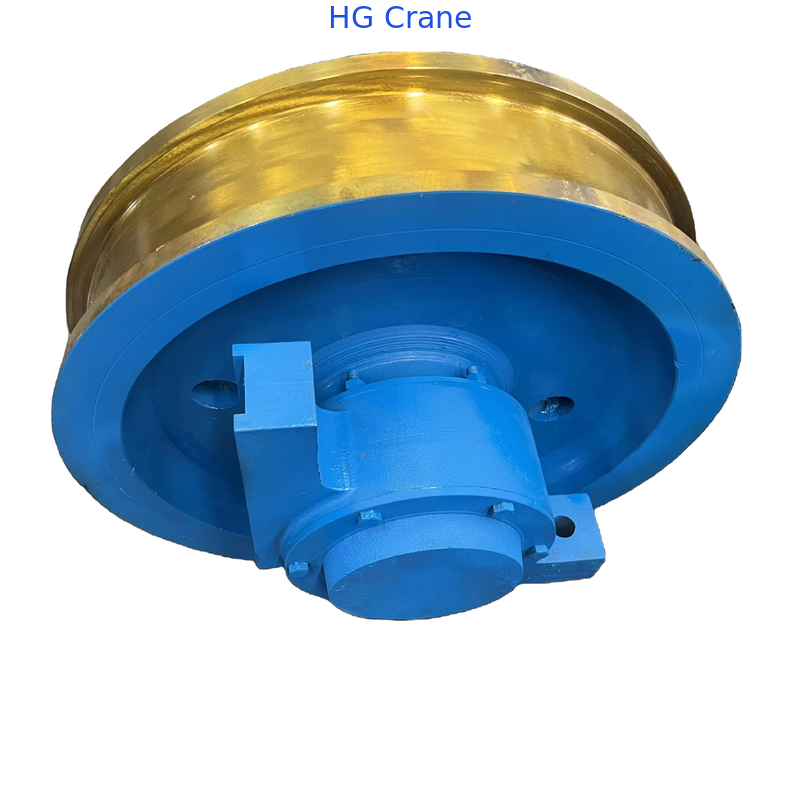

Durable Cast Iron Industrial Wheel for Material Handling Trolleys
Product Overview
Our durable cast iron industrial wheels are specifically designed to meet the rigorous demands of material handling trolleys, heavy-duty transport carts, and various industrial logistics equipment. Built from high-quality cast iron, these wheels provide excellent stability, heavy load-bearing capability, and reliable performance in demanding factory environments.
Superior Material Manufacturing
The wheels are manufactured using premium cast iron materials, offering a robust structure with high impact resistance. Through our advanced casting and precision machining processes, each wheel ensures tight tolerances for smooth, low-friction rotation. The heavy-duty design guarantees minimal deformation even under continuous heavy loads, ensuring long-lasting performance.
Key Features
High Load Capacity: Engineered to safely support substantial weights without structural failure.
Smooth & Quiet Operation: Precision-machined tread surfaces minimize rolling resistance and operational noise.
Corrosion Resistance: Available with various anti-rust surface treatments and coatings to withstand humid or harsh industrial environments.
Flexible Installation: Designed with versatile mounting options to easily integrate into existing trolley or cart frames.
Quality Assurance
As a trusted manufacturer of industrial components, we maintain a strict quality control system throughout the entire production cycle, from raw material inspection to the final finished product. Our manufacturing processes ensure consistent quality, safety, and product reliability for your material handling needs.
Why choose our support services?
| Drawing No. | D1 Tread Diameter | D1 Wheel Outer Diameter | B Wheel Thickness | b Wheel Groove | H | h | A Angle Box Groove Center Distance | L Wheel Center to Shaft End | E Angle Box Groove Width | F Angle Box Foot Hole | d Shaft End Diameter | 1 Shaft End Length | Shaft Key | Bearing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L762 | ø 500 | ø 540 | 130 | 110 | 300 | 140 | 270 | 365 | 50 | 21 | 80 | 130 | 22 | 7524 |
| L758 | ø 400 | ø 440 | 120 | 100 | 260 | 120 | 240 | 365 | 50 | 21 | 80 | 130 | 22 | 7520 |
| L756 | ø 380 | ø 350 | 100 | 81 | 225 | 105 | 200 | 320 | 50 | 21 | 65 | 105 | 18 | 7518 |
| L754 | ø 280 | ø 250 | 80 | 70 | 180 | 80 | 180 | 240 | 30 | 21 | 45 | 85 | 14 | 7512 |
| Drawing No. | D (Tread Diameter) | D1 (Wheel Outer) | B (Wheel Thickne) | b (Wheel Groove) | H | h | A (Angle Box Groove Center) | L (Wheel Center to) | E (Angle Box Groove) | F (Angle Box Foot) | d (Shaft End) | 1 (Shaft End) | Shaft Key | Bearing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L196 | ø 800 | ø 850 | B | b | 485 | 220 | 380 | 520 | 80 | 32 | 120 | 165 | 32 | 3634 |
| L178 | ø 700 | ø 750 | B | b | 485 | 220 | 380 | 500 | 80 | 32 | 110 | 165 | 28 | 3634 |
| L176 | ø 700 | ø 750 | B | b | 440 | 200 | 360 | 500 | 80 | 33 | 110 | 165 | 28 | 3630 |
| L174 | ø 600 | ø 650 | B | b | 390 | 180 | 325 | 470 | 70 | 26 | 95 | 130 | 25 | 3626 |
| L762 | ø 800 | ø 850 | B | b | 410 | 190 | 365 | 500 | 90 | 33 | 95 | 130 | 25 | 7530 |
| L768 | ø 700 | ø 750 | B | b | 350 | 160 | 315 | 455 | 80 | 33 | 90 | 130 | 25 | 7524 |
| L766 | ø 600 | ø 640 | B | b | 310 | 140 | 280 | 415 | 50 | 25 | 85 | 130 | 22 | 7520 |
| L764 | ø 500 | ø 540 | B | b | 310 | 140 | 280 | 400 | 50 | 25 | 75 | 105 | 20 | 7520 |
Act now: Provide us with your crane model, rated load capacity and rail type, and we can provide a wheel set selection proposal and quotation within one day. Please feel free to contact us!
