Double beams girders European type overhead crane compared with the general double beam bridge crane, its weight is reduce by about 15-30%, the max wheel presuure is redured by about 10-35%, which can reduce the requirement of factory building structure and reduce production cost.
The main beam employs bias-rail box-type structure and connects with end beam by high-strngth bolt ensure easy transportation.Trolley uses open compact winching structure, which with meduim and small ton can use new hoist trolley. Traveling mechanisms of crane and trolley adopt European three-in-one drive form, the harden grae face reducer has good performances in compact structure, low noise, no oil leakage and long service life.
As using new compact trolley and high-strength materials, European eot crane has small overall dimension and light weight. Compared with traditional crane, which can decrease the height of factory building and reduce the cost. Full variable-frequency control runs steadily without any compaction. Run with heavy load at low speed and light load at high speed, it can save energy and reduce comsumption.
 |
|
|
|
I'm Online Chat Now

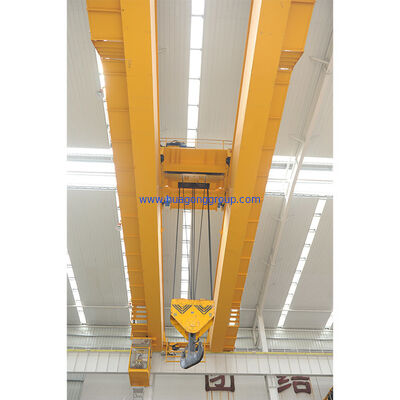

25600 kg Capacity Double Beam Bridge Crane CE Certificate Easy Operated Overhead Traveling Crane 50 Ton Max Lifting Load
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
|---|---|---|---|
| Core Components: | PLC, Engine, Bearing | Max. Lifting Load: | 50Ton |
| Max. Lifting Height: | 10 M | Span: | 5~50m |
| Warranty: | 1 Year | Weight (KG): | 25600 Kg |
| Product Name: | European Type Double Girder Electric Overhead Crane | Electical: | Schneider Brand Or Siemens Brand |
| Power Supply: | Customer Request | Control Method: | Cabin Or Pendent Line Or Remote Control |
| Color: | Customer's Requirements | Lifting Mechanism: | Eliectric Hoist Or Electric Trolley |
| Girder Type: | Box Shape | Power Source: | Clients' Requirments |
| Ambient Temperature: | -25°-40° | Motor: | Global Brand |
Products Description
NLH Double beams European type electric overhead bridge traveling eot crane
Features of European Overhead Crane:
1. Overhead traveling on the steel structure, normally in workshop, heavy working duty from A5-A8
2. Light self weight, could save steel structure cost.
3. Lifting and traveling is very accurate.
4. VVF/ frequency inverter control, 3-5 speeds to operate, very stable to lift and running.
5. Six direction action, to make sure the enough wide working area.
6. Full safety system as follows:
* Weight overload protection
* Weight overload protection
* Emergency stop system
* Over current protection,Short-circuit protection
* Phase sequence protection
* Zero position protection
* Voltage loss protection
* Limit switch and stopper for crane long traveling and cross traveling
* Lifting overhigh and overlow limit switch
Product Paramenters
Details Images
Company Profile
Production Line
Certifications
Product packaging
FAQ
Q. What's the information should I provide when inquiry? 1. Crane Capacity 2. Crane Span 3. Lifting Height 4. Work Duty(A3/A4 /M3...) 5. Traveling Length 6.Control Method: A: remote control with push buttons B: cabin(space capsule seat) control with joystick. Choose any type as you like. 7. Any spare parts like rails, bus-bar? 8. Local Power Supply 9. Quantity 10.Lifting Object 11. Desitination Port More details or drawings, the better. Notes: The parameters can be customized according to your specific needs. Q. Can this type work in hazardous environment? A:Sure! We can customize for you, acid proof or explosion proof, no problem for that. Q. Can you provide the serious lifting tools? A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement! Q: How do you guarantee the quality? We will constantly check the quality during the manufacturing process, andstrictly test the equipment before shipment, and we will also send you aguality certificate. After your selection 1. We will count cheapest shipping cost and make invoice to you at once. 2. Test each machine before delivery to ensure their quality, then send out to you after your payment. After-sale Service 1. Installation service of overhead crane available with: Video tutorial support for whole installation process. 7/24 remote assistance for crane installation guidance and commissioning. 2. We are very glad that customer give us some suggestion for price and products. 3. If you have any question, please contact us freely by E-mail or Telephone
Contact Details
Henan Huagong Industrial Group Co., Ltd.
Contact Person: Sicily
Tel: +86 13713229714
