Concrete mixer description

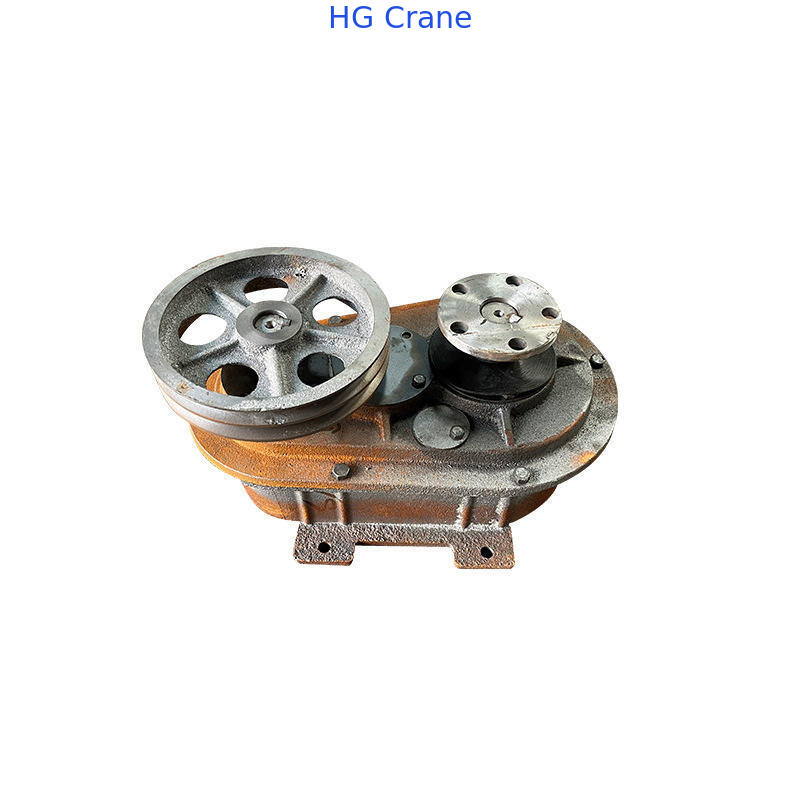

This product is a dedicated reduction drive assembly for vertical forced pan mixers. It adopts an enclosed gear reduction structure with an integral cast steel housing. One side is equipped with a pulley to connect with an electric motor or diesel engine for power input, while the output shaft on the other side is directly coupled to the mixing blades of the mixer.
1.It adopts multi-stage gear meshing transmission internally to reduce motor speed and boost output torque, perfectly adapting to heavy-load working conditions during concrete mixing.
2.The integrally cast housing features excellent sealing performance. Gear oil is filled inside for lubrication, enabling dustproof, leakproof, anti-vibration and wear-resistant performance.
3.It comes with a built-in mounting base, which can be directly installed on the frame of JW series vertical pan mixers, serving as a core power transmission component for mixers.
4.It has three mainstream specifications: 350, 500 and 750, matching mixers of different volumes. It supports two power input modes: electric motor and diesel engine. Bulk stock is available at the factory, with wholesale and customization services provided.
Compatible Equipment
JW series vertical open-mouth concrete mixers (JW350, JW500, JW750). This product serves as the original-equipment core replacement component for these mixers.
Core Function
Converts high-speed motor power into low-speed, high-torque output to drive the mixing arms for continuous agitation of sand, stone, and cement mixtures. It is an essential core transmission component for vertical mixers.
Main Application Areas
Construction sites: Rural house building, road construction, temporary on-site batching plants for mixing cement mortar, concrete, and lime materials.
Small-scale infrastructure projects: Pipeline works, slope protection projects, and home renovation sites requiring on-site small-batch concrete mixing.
Building material / precast component workshops: Power head for vertical mixing equipment in small-scale cement brick and precast component production lines.
Construction machinery repair parts: Direct replacement spare part for gearbox failures in aged open-mouth mixers.
