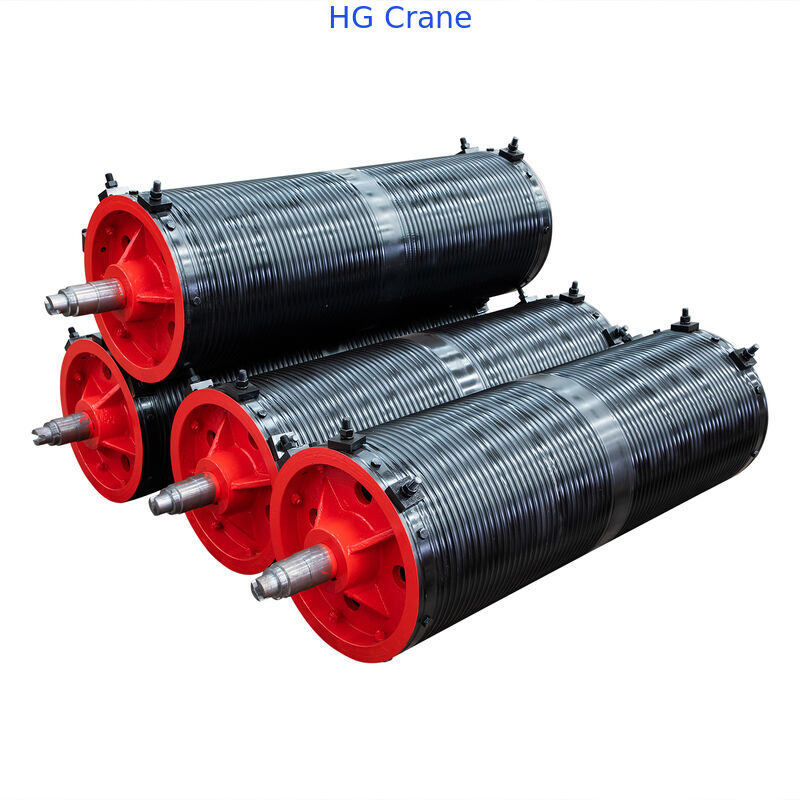

Custom Drawing Wire Rope Drum according to Client Specs

Custom Drawing Wire Rope Drum according to Client Specs

Product Overview
In the hoisting mechanism of a crane, the drum group plays an essential role in winding the wire rope and enabling the lifting and lowering of heavy loads. As the critical link between the power source and the load, the drum group directly influences hoisting stability, operational safety, and the service life of the entire equipment. A complete drum group typically consists of the drum body, drum shaft, gear coupling (or main gear), drum hub, bearing housings, and bearings.

Material Options & Process Advantages
We offer three material solutions for drum manufacturing, each selected based on application requirements:

Compared to traditional cast drums, welded steel plate construction is increasingly preferred in global markets, especially for large-diameter drums where cast options present manufacturing challenges.

What We Deliver – Complete Assemblies
Each drum group is supplied as a fully integrated assembly, including:

• Drum body

• Drum shaft

• Gear coupling (or large gear)

• Drum hub

• Bearing housings and bearings

All components are pre-assembled and tested, allowing for direct installation upon receipt – reducing your on-site preparation time and labor costs.

Customization Services
We support non-standard designs based on your specific requirements. Engineering drawings can be provided for customized:

• Drum diameter, length, and wall thickness

• Rope groove specifications

• Bearing sizes and configurations

Simply share your crane parameters, and we will tailor the drum group accordingly.

After-Sales Support
Our commitment extends beyond delivery:

• Installation guidance to ensure proper setup

• Routine maintenance recommendations for extended service life

• Troubleshooting assistance to resolve any operational abnormalities

Get Started – Quick Quotation
To receive a tailored selection proposal and price quote, please provide us with:

• Crane model

• Rated hoisting capacity (tonnage)

• Required lifting height

We respond promptly with optimized solutions to meet your project needs. Welcome to contact us for more details!
