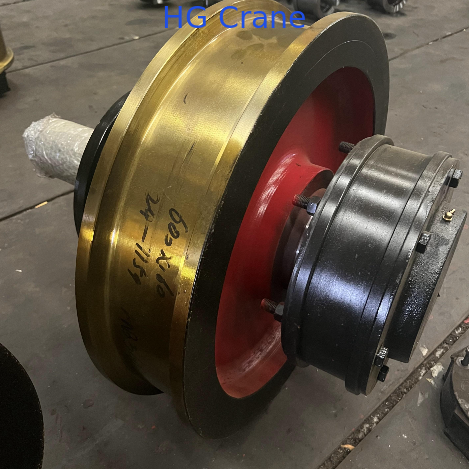

Forged Steel Crane Wheels with High Corrosion Resistance and Tapered Roller Bearing for Heavy Duty Applications

Forged Steel Crane Wheels with High Corrosion Resistance and Tapered Roller Bearing for Heavy Duty Applications

Product Details:
Place of Origin: CHINA
Brand Name: HG CRANE
Certification: CE\ISO
Model Number: L
Detail Information
Place of Origin:
CHINA
Brand Name:
HG CRANE
Certification:
CE\ISO
Model Number:
L
Color:
Black
Bearingtype:
Tapered Roller Bearing
Type:
Cast Wheel, Forged Wheels, Solid Wheel
Weight:
1000 Kg
Manufacturingstandard:
ISO 9001
Corrosionresistance:
High
Model:
JW200/350/500
Productname:
Crane Wheels
Mountingtype:
Flanged
Caster Brake Type:
No Brake Included
Material:
Forged Steel
Surfacetreatment:
Heat Treated
Trading Information
Minimum Order Quantity:
1
Packaging Details:
Wooden Box
Delivery Time:
30-45
Payment Terms:
T/T
Product Description

Classification of Wheel Assembly Corner Boxes

Generally, the corner boxes of wheel assemblies are classified into right-angle boxes, flat-base boxes, round-corner boxes, bolted types, etc.

Round Bearing Housing Wheel Assembly

With the advancement of China's industrial technology, the requirements for cranes have become increasingly stringent, and the angular bearing housing wheel assembly can no longer fully satisfy user demands. To enable rapid wheel assembly replacement, the round bearing housing wheel assembly was developed.

For cranes equipped with round bearing housing wheel assemblies, the wheel mounting positions on the bridge end carriage or trolley end carriage are designed as bored holes, with both sides of the web plates also machined. The wheel assembly mates with the machined surfaces on both sides of the end carriage web plates and the wheel mounting holes on the web plates. Holes are drilled on the bearing housing and threaded holes are tapped on the end carriage. When replacing the wheel assembly, since all dimensions are already positioned by the machined surfaces, the installation personnel only need to move the wheel assembly into place and tighten the bolts.

Disadvantages of Round Corner Boxes

First, because this type of wheel assembly relies entirely on machined surfaces for positioning, there is limited room for major adjustments to the wheel alignment. Adjustment can only be made by adding shims between the bearing housing and the end carriage, and the adjustment range is quite limited. Therefore, once crane rail gnawing occurs due to wheel alignment deviation, it is very difficult to rectify.

Second, when the trolley of a general-purpose overhead bridge crane experiences the "three-leg" phenomenon (where four wheels are not in the same plane), it is also very challenging to adjust.

Application of Right-Angle Boxes and Flat-Base Boxes

In practice, controlling the horizontal skew value of the traveling mechanism wheels primarily involves adopting corresponding technical measures based on different product structures. A relatively common design structure with simpler processing techniques is to assemble the wheels onto brackets to form wheel assemblies—for example, angular bearing housing wheel assemblies and bogie-type 45° split bearing housing wheel assemblies. After installation on the crane main structure, the wheel horizontal skew is adjusted to an appropriate level and then secured.

Classification and Characteristics of Wheel Assembly Processing Techniques

The commonly used processing techniques for our company's wheel assemblies are casting and forging.

Castings have greater strength and are used for parts subjected to compressive or tensile forces, such as rudder horns, bulbous bows, and anchor lips on ships, which are all cast steel components.

Forgings (sometimes also called stampings) have greater toughness and are used for parts subjected to torque, such as automotive steering arms.

Forging: A forging is a metal object shaped by applying compressive force through plastic deformation. This force is typically applied using a hammer or press. The forging process creates a refined grain structure and improves the physical properties of the metal.

Casting: A casting is a metal object obtained by various casting methods—that is, by pouring, injecting, suctioning, or other casting techniques, molten liquid metal into a pre-prepared mold, allowing it to cool, and then processing it to obtain an object with a specific shape, size, and performance.

Application Scope

Double-flange wheel assemblies are mainly used in gantry cranes, double-girder overhead bridge crane bridge traveling mechanisms, ladle crane traveling mechanisms, electric flat cars, bogie assemblies, ship unloaders, shipyards, port machinery, coal unloaders, stacker-reclaimers, container cranes, etc.

Single-flange wheel assemblies are mainly used in gantry cranes below 5t, trolley traveling mechanisms of double-girder overhead bridge cranes, etc.

To help us serve you better and faster, please let us know:

  • A. Crane capacity (T)
  • B. Working class
  • C. Wheel assembly model (with size or drawing)
  • D. Material
  • E. Rail model

Forged Steel Crane Wheels with High Corrosion Resistance and Tapered Roller Bearing for Heavy Duty ApplicationsForged Steel Crane Wheels with High Corrosion Resistance and Tapered Roller Bearing for Heavy Duty ApplicationsForged Steel Crane Wheels with High Corrosion Resistance and Tapered Roller Bearing for Heavy Duty ApplicationsForged Steel Crane Wheels with High Corrosion Resistance and Tapered Roller Bearing for Heavy Duty ApplicationsForged Steel Crane Wheels with High Corrosion Resistance and Tapered Roller Bearing for Heavy Duty ApplicationsForged Steel Crane Wheels with High Corrosion Resistance and Tapered Roller Bearing for Heavy Duty ApplicationsForged Steel Crane Wheels with High Corrosion Resistance and Tapered Roller Bearing for Heavy Duty ApplicationsForged Steel Crane Wheels with High Corrosion Resistance and Tapered Roller Bearing for Heavy Duty Applications

NameSpecification DDrawing No.AS/hAxle d*1Bearing Model
Wheel Set0250 Single SideL754/755180180/80237045*827512
Wheel Set0350 Single SideL756/757200225/105320065*1057518
Wheel Set0400 Single SideL758/759240260/120365080*1307520
Wheel Set0500 Single SideL762/763270300/140365080*1307524
Wheel Set0500 Double SideL764/765280310/140400075*1057520
Wheel Set0600 Double SideL766/767280310/140415085*1307520
Wheel Set0700 Double SideL768/769315350/160455090*1307524
Wheel Set0800 Double SideL770/771365410/190500095*1307530
Wheel Set0600 Heavy DutyL174/175325390/180470095*1303626
Wheel Set0700 Heavy DutyL176/177360440/2005000110*1653630
Wheel Set0700 Heavy DutyL178/179380485/2205000110*1653634
Wheel Set0800 Heavy DutyL196/197380485/2205000110*1653636
